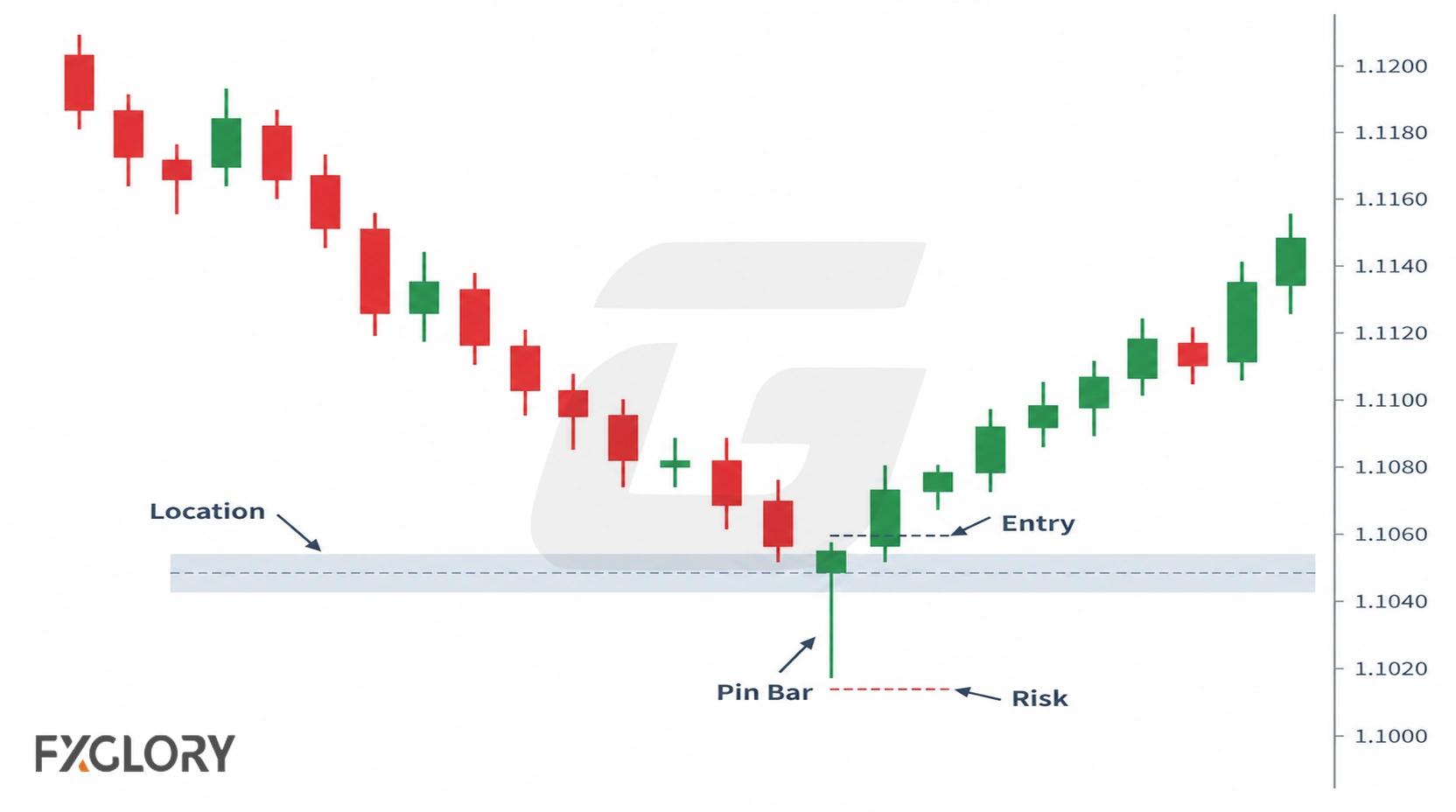

What Is A Pin Bar Forex Strategy?
A pin bar forex strategy is a trade-planning method built around a long-wick rejection candle. The candle usually shows that price tested one side of the range and then closed away from that extreme.
The pin bar can appear near support, resistance, a trend pullback, a range edge, a failed breakout, or a role-reversal zone. It can also appear in messy price action where it does not give a useful trading reason. That means the pin bar itself is only a candle pattern; it is not a complete strategy.
This page focuses on pin-bar-specific decisions: how to judge wick quality, how to review location, how entry methods can be planned, where stops and targets can be reviewed, how failed pin bars happen, and when the setup should be skipped.
For the broader candlestick-strategy framework that connects candle behavior with market context, entries, exits, stop placement, false-signal rules, spread checks, and account risk, use the Forex Candlestick Strategy guide.
For the anatomy-only explanation of pin bar structure, long wicks, body position, bullish pin bars, bearish pin bars, and similar candle comparisons, use the Pin Bar In Forex guide.
Pin Bar Pattern vs Pin Bar Strategy
A pin bar pattern describes the candle shape. A pin bar strategy explains how that candle is reviewed with market context, entry rules, stop placement, target planning, failed-setup rules, and account risk.
Confusing those two ideas creates weak decisions. A long wick may look important, but the wick alone does not define whether the trade has useful location, a valid stop, realistic target room, or acceptable risk.
| Item | What It Means | Why It Is Not Enough Alone |
|---|---|---|
| Pin bar pattern | A candle has a dominant wick and closes away from the tested extreme | The candle does not define trend, target, stop, or risk |
| Pin bar meaning | The candle may show rejection, failed movement, or temporary pressure shift | The meaning changes with location and market condition |
| Pin bar strategy | The trader has context, trigger, invalidation, stop, target, and risk rules | The plan can still be invalid if spread, volatility, or structure changes |

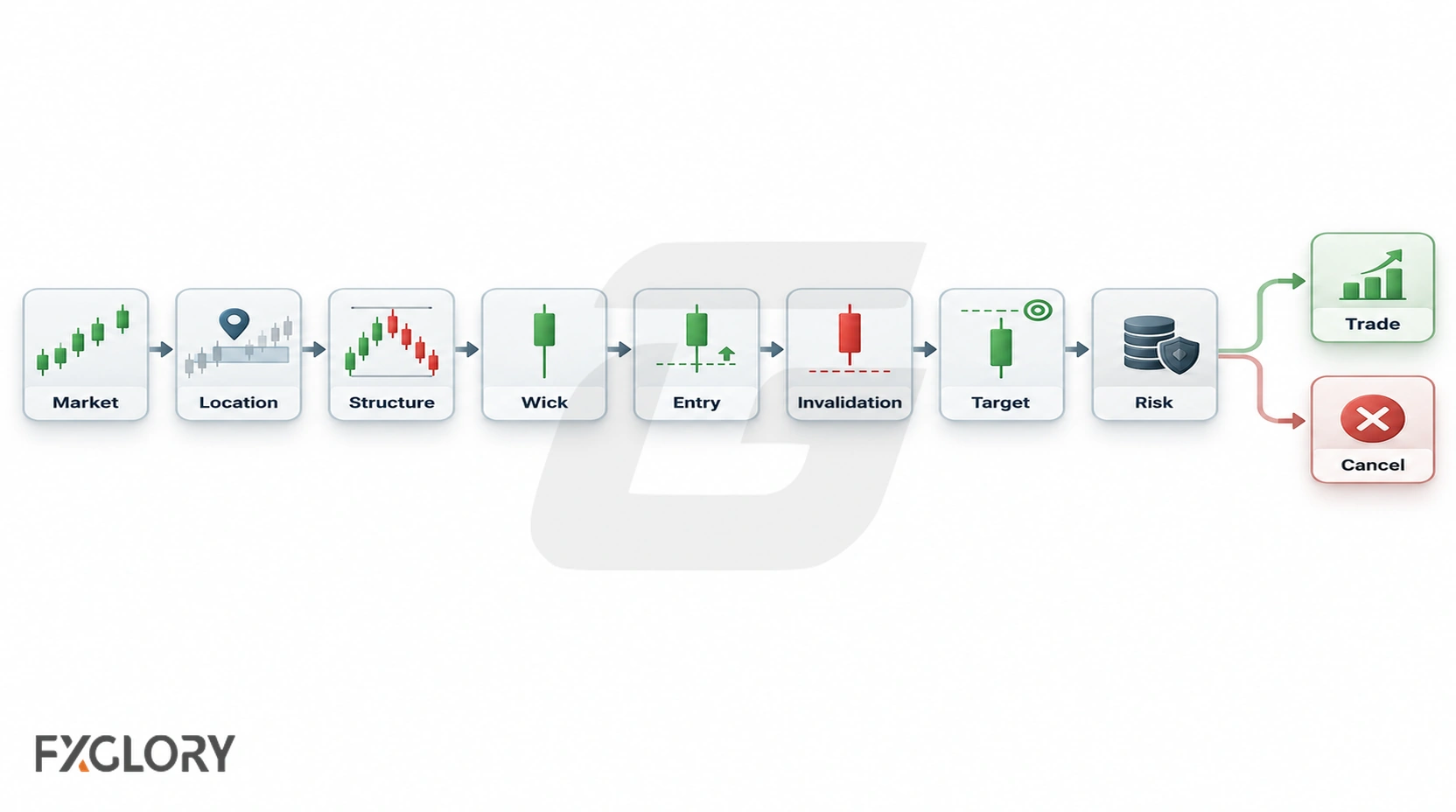

Forex Pin Bar Decision Sequence
A forex pin bar strategy should follow the same order each time. If the trader starts with the wick and searches for reasons afterward, the setup cannot be reviewed cleanly.
| Step | Decision | Continue Only If |
|---|---|---|
| 1. Market condition | The market is trending, ranging, pulling back, breaking out, reversing, or unclear | The condition supports a pin bar review |
| 2. Location | The candle forms near support, resistance, trend structure, range edge, pullback zone, or failed-break area | The candle has a reason beyond wick shape |
| 3. Pin bar structure | The wick, body, close, and candle range are clear after the candle closes | The pattern is not forced while the candle is still forming |
| 4. Wick quality | The wick tests a meaningful area and closes away from the extreme | The wick is not just random noise inside chop |
| 5. Entry trigger | The strategy defines close, break, retrace, retest, or no-entry rules | The entry is not early, late, or emotional |
| 6. Invalidation | The trader knows where the rejection idea is wrong | The stop is not guessed after entry |
| 7. Target | The target uses next structure, support/resistance, swing point, range, measured move, trail, or time rule | The target still makes sense after spread |
| 8. Risk | Position size, margin, and account limits fit the stop distance | The trade does not break daily or account-level risk rules |
| 9. Cancel rule | The setup has a written failure condition | The trade is not held after the pin bar reason disappears |

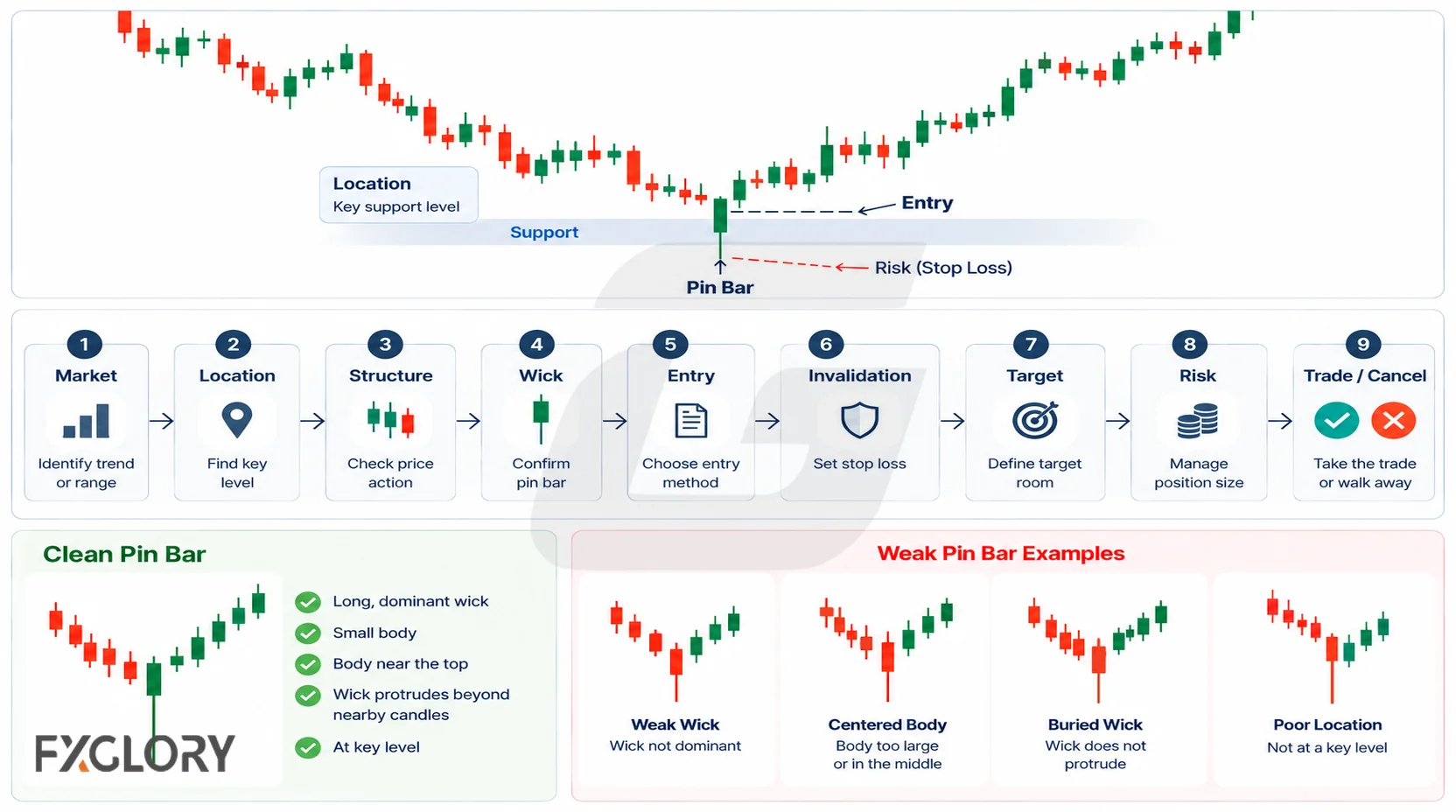

Pin Bar Quality Filters
Pin bar quality matters more than pin bar quantity. Long wicks can appear often, especially on lower timeframes or during unstable market periods. Most long wicks are not strong enough to carry a trade idea by themselves.
| Quality Check | Better Version | Weak Version |
|---|---|---|
| Dominant wick | The wick clearly tests one side of the candle range | Wick is only slightly larger than the body |
| Close location | The candle closes away from the tested extreme | Candle closes near the middle with unclear rejection |
| Body position | Body sits near the opposite side of the rejected wick | Body is centered and the candle looks indecisive |
| Tail protrusion | The wick stands out beyond nearby candle ranges or a visible level | Wick is buried inside overlapping candles |
| Useful location | Pin bar forms near support, resistance, pullback, range edge, or failed break | Pin bar forms in the middle of random movement |
| Market condition | Trend, range, pullback, or level context is visible before the candle forms | Trader decides the context after seeing the candle |
| Target room | There is space before the next support, resistance, or swing obstacle | The candle points directly into the next obstacle |
| Spread check | Entry and target still make sense after spread | Small target is damaged by cost |
| Event risk | Scheduled news and session conditions are checked before entry | Pin bar is accepted during unstable volatility without a rule |

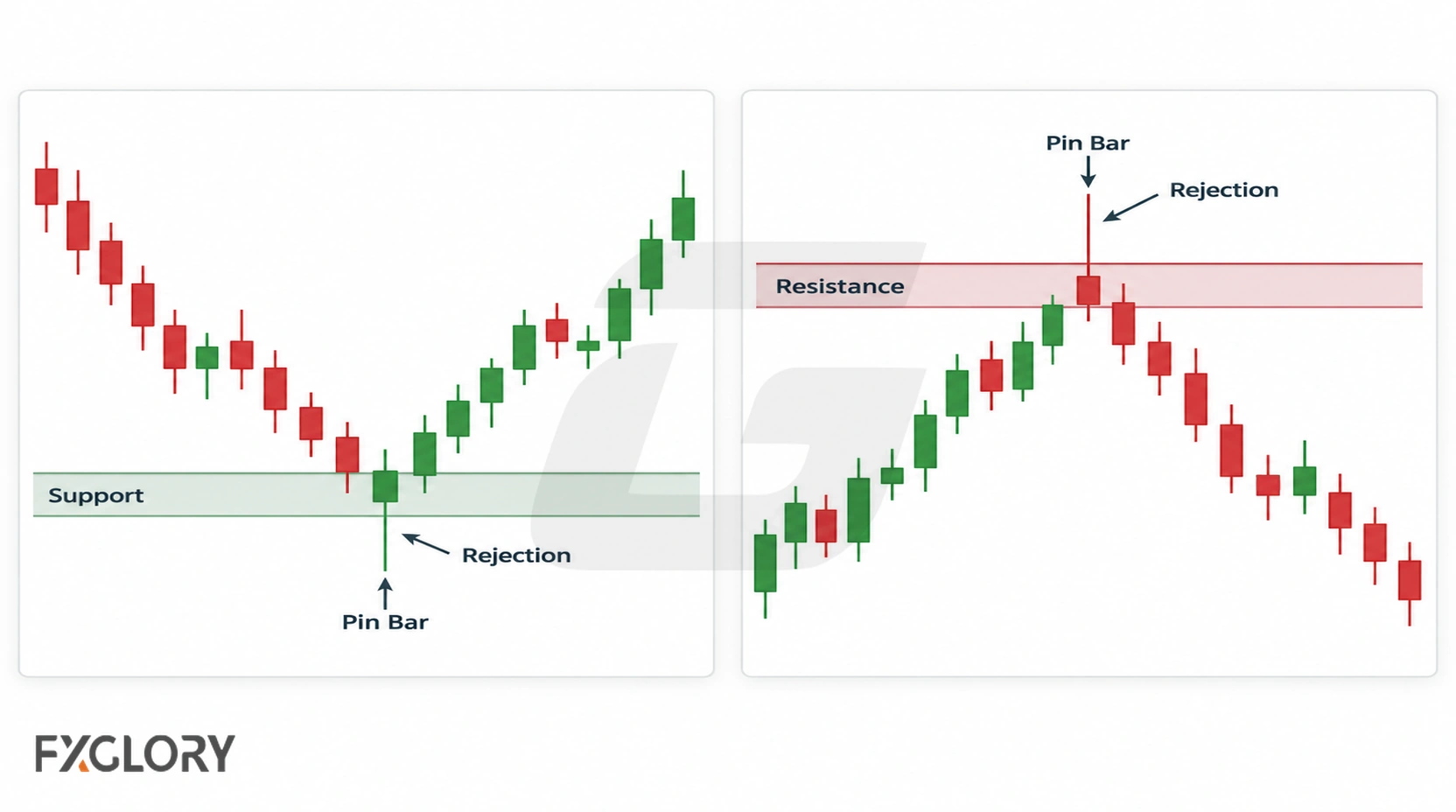

Pin Bar At Support And Resistance
A pin bar near support or resistance can show that price tested a decision zone and closed away from it. That location can be useful, but it also increases false-break risk because price may pierce the level before deciding direction.
The level should be marked before the pin bar forms. If support or resistance is added only after the candle appears, the trader may be fitting the chart around the desired trade.
| Location | Possible Use | Risk |
|---|---|---|
| Bullish pin bar near support | Review whether lower-price rejection appears at a valid support area | Support may fail or the wick may be only a temporary test |
| Bearish pin bar near resistance | Review whether higher-price rejection appears at a valid resistance area | Resistance may break or become support |
| Pin bar after a false breakdown | Review whether price returned above support after testing below it | Follow-through may fail if range structure is weak |
| Pin bar after a false breakout | Review whether price returned below resistance after testing above it | Breakout may resume after a short pullback |
| Pin bar at role-reversal zone | Review retest behavior after a broken level | Old level may not hold after the break |
| Pin bar in the middle of a range | Usually lower-quality unless the strategy has a written rule | Target and invalidation may be unclear |
For level quality, role reversal, false breaks, wicks, and spread-aware support/resistance rules, use the forex support and resistance strategy guide.

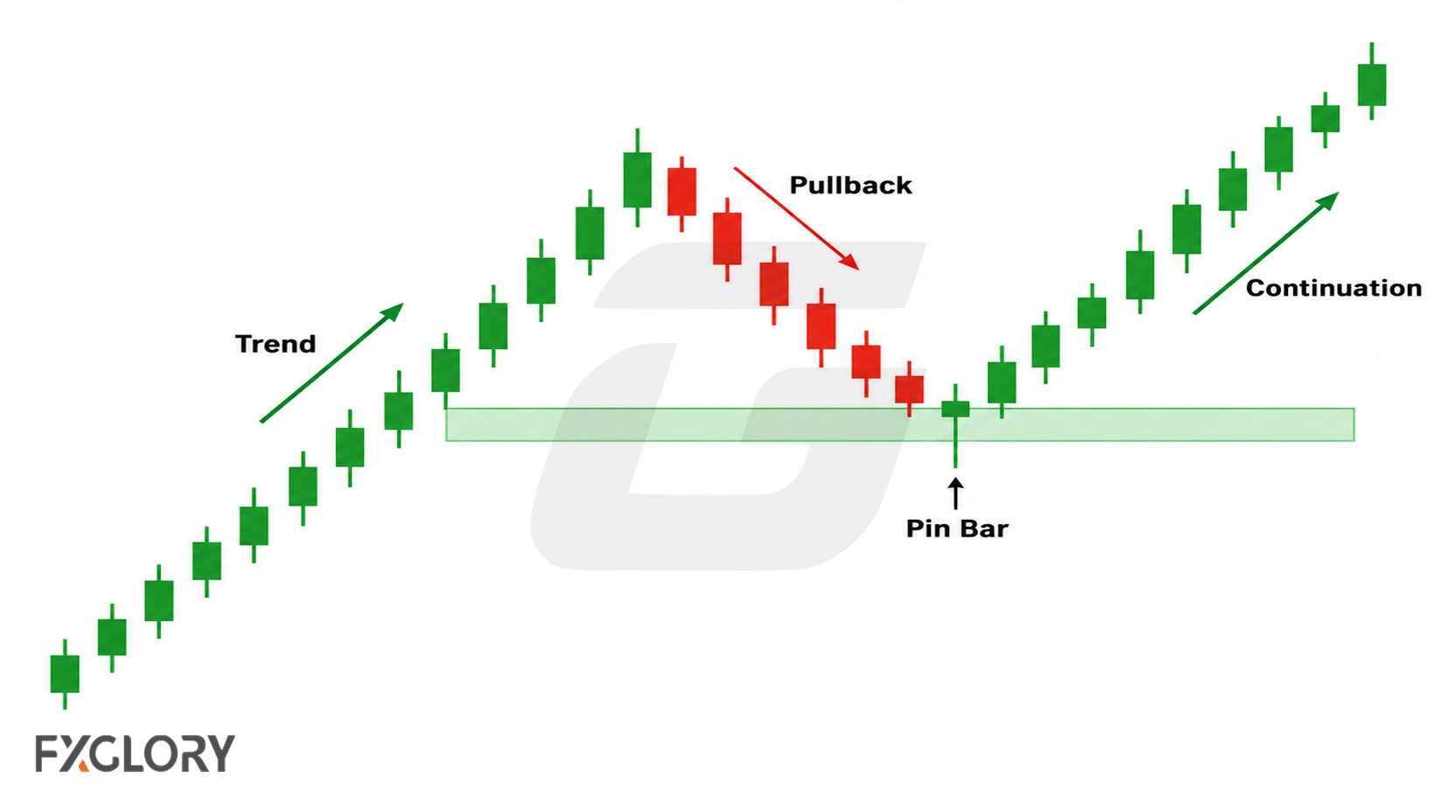

Pin Bar In Pullbacks And Trends
Pin bars are often reviewed during pullbacks because a long wick can show that price tested against the broader trend and then closed back toward the trend direction. That does not mean every pullback pin bar should be traded.
The trend should still be valid, the pullback should have a clear structure, and the candle should not point directly into nearby support or resistance. A pin bar after a late or exhausted move may be weaker than a pin bar after a controlled correction.
| Trend Situation | Useful Pin Bar Role | Weak Use |
|---|---|---|
| Uptrend pullback | Bullish lower-wick rejection may help review whether the pullback is slowing | Trader buys after the uptrend structure has already failed |
| Downtrend pullback | Bearish upper-wick rejection may help review whether the rally is failing | Trader sells after the downtrend structure has already failed |
| Strong trend expansion | Pin bar may show a pause, rejection, or late-move warning | Trader chases the next candle without target room |
| Weak or choppy trend | Pin bar may be too noisy to support a clean decision | Every wick is labeled as trend continuation |
| Countertrend pin bar | May be reviewed only if the level and invalidation are clear | Trader fights a trend because one wick appeared |
For directional structure, use the forex trend trading strategy guide. For correction behavior, use the forex pullback strategy guide.
Pin Bar In Ranges
In a range, pin bars are usually more useful near the range edges than in the middle. A long lower wick near range support or a long upper wick near range resistance gives the candle a clearer location. A pin bar in the center of a range often has weaker target and invalidation logic.
| Range Area | Useful Pin Bar Role | Weak Use |
|---|---|---|
| Support edge | Review whether lower-price rejection appears near the range low | Trader buys every lower wick without checking range quality |
| Resistance edge | Review whether higher-price rejection appears near the range high | Trader sells every upper wick without checking breakout risk |
| Middle of range | Usually weaker because target and invalidation are less clear | Trader enters because a wick appeared |
| Range break | Pin bar may help review whether the break failed or continued | Trader keeps using range rules after the edge fails |
For full range-edge and midpoint rules, use the forex range trading strategy guide.

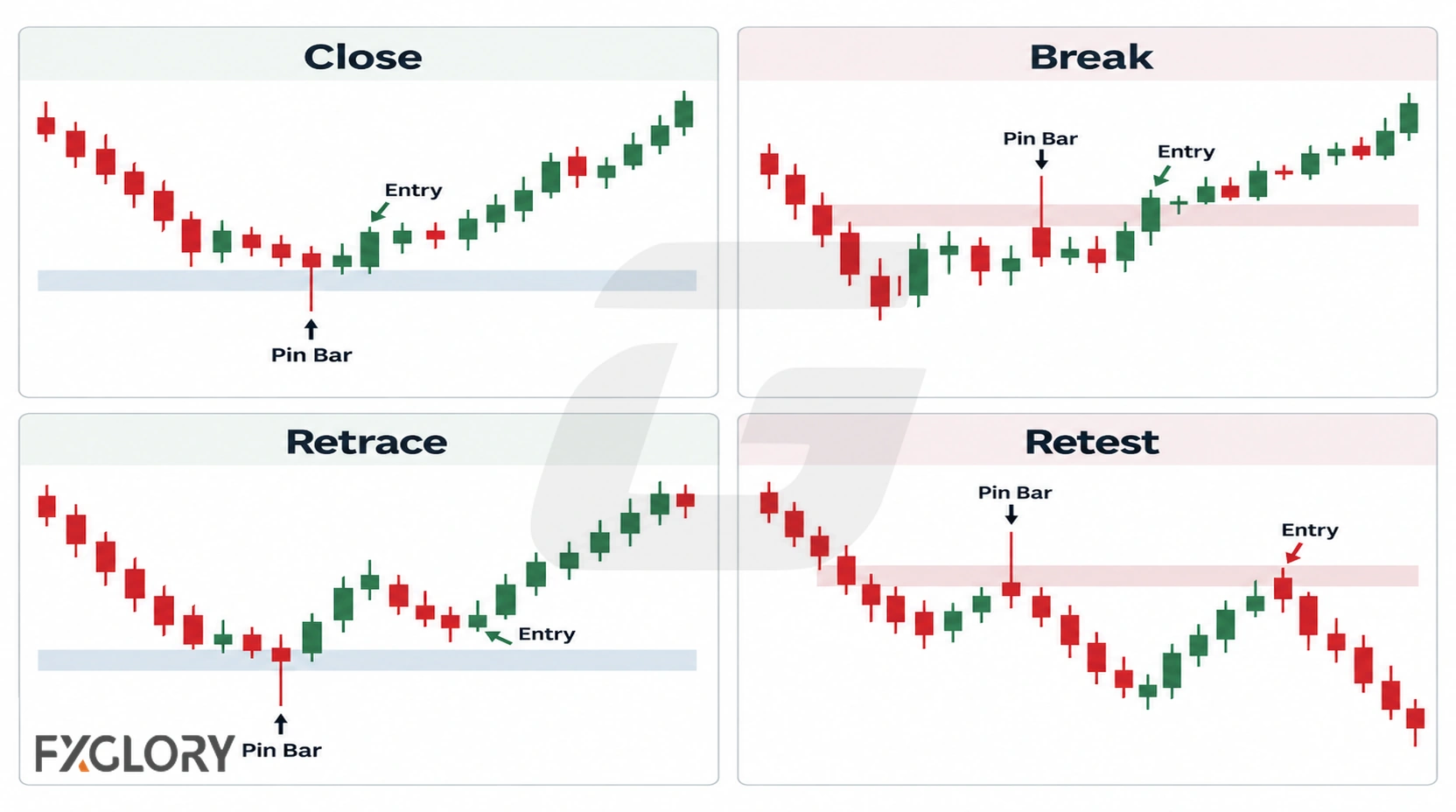

Pin Bar Entry Methods
A pin bar entry method should be written before the candle forms. The trader should not change from one entry type to another after price starts moving.
| Entry Method | Possible Use | Main Risk |
|---|---|---|
| Close confirmation | Trader waits for the pin bar to close before judging the setup | Entry may be later and closer to the next obstacle |
| Break of pin bar high or low | Trader reviews entry after price moves beyond the completed pin bar in the planned direction | Break can fail quickly if context is weak |
| Retrace entry | Trader waits for price to retrace into part of the pin bar range before entry | Retrace may never happen or may move through the candle idea |
| Halfway or 50% retrace review | Trader reviews a deeper entry only if the candle, level, and risk still fit | Trader treats the midpoint as automatic support or resistance |
| Retest entry | Trader waits for price to return to a broken level, wick area, or structure zone | Retest may fail or reduce target room |
| No-entry rule | Trader skips if the pin bar does not trigger the written rule | Impatience creates early or late entries |
For a fuller execution framework, use the forex entry and exit strategy guide.

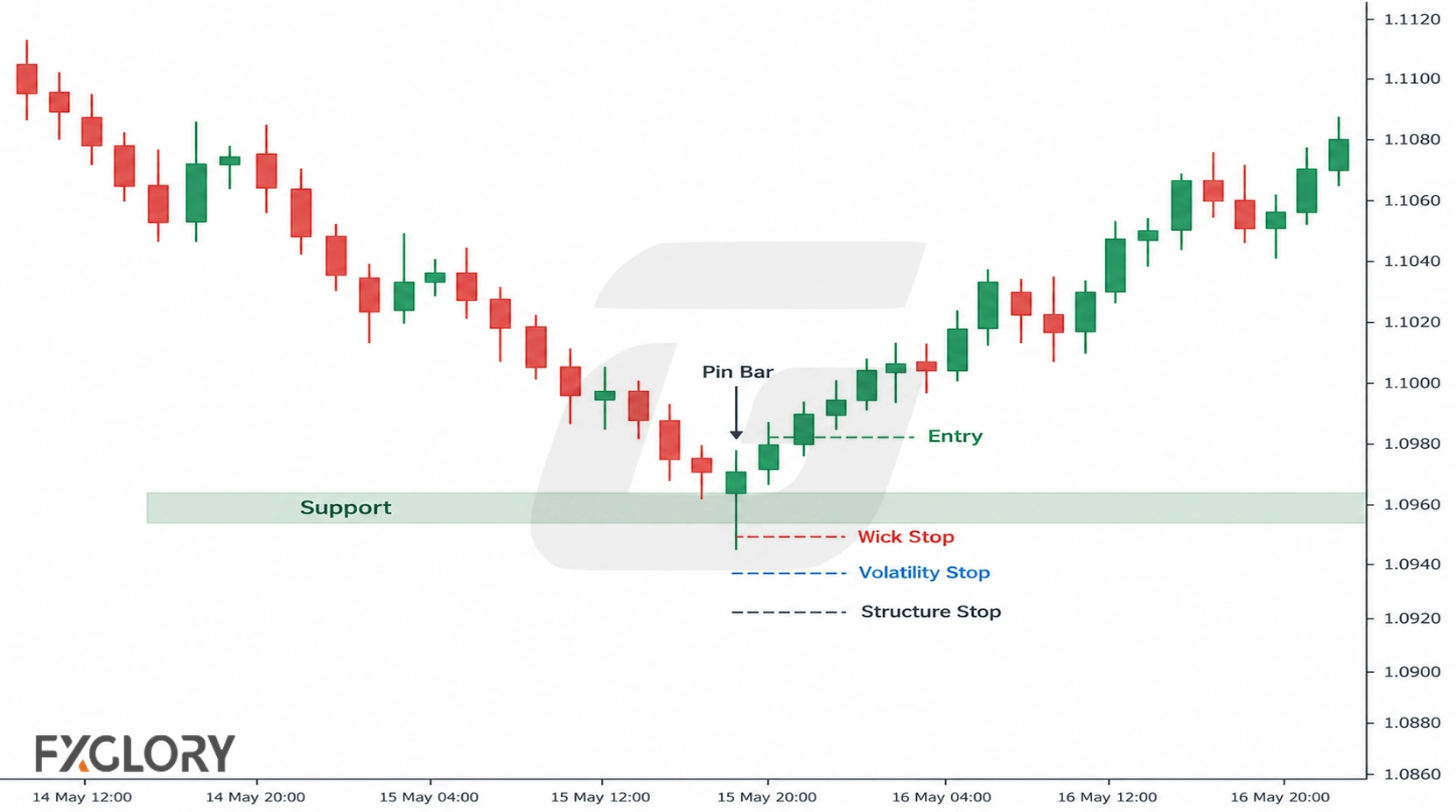

Stop Placement Around Pin Bars
Stop placement should come from invalidation, not fear or convenience. A tighter stop is not automatically better. A wider stop is not automatically safer. The stop should sit where the pin bar idea no longer makes sense.
| Stop Method | Possible Rule | Weak Version |
|---|---|---|
| Beyond pin bar wick | Stop is placed beyond the rejected high or low | Stop is too close to normal wick noise |
| Beyond full candle range | Stop is placed beyond the full signal candle | Stop distance is too large for the account |
| Beyond support or resistance | Stop is placed where the level and pin bar idea fail together | Level quality is ignored |
| Beyond swing high or low | Stop uses structure instead of candle shape alone | Structure is chosen after entry |
| Volatility-adjusted stop | ATR or recent candle size helps review normal movement | Volatility is used to justify oversized risk |
Position size should be chosen only after stop distance is known. For account-level rules, use the forex risk-management strategy page.
Targets And Exit Rules
A pin bar trade should define the target and exit rule before entry. If the trader decides the exit only after the trade is open, the pin bar strategy becomes reactive.
| Exit Method | Possible Rule | Weak Version |
|---|---|---|
| Next support or resistance | Target is planned near the next meaningful zone | Target ignores nearby obstacles |
| Swing high or swing low | Target uses recent market structure | Target is chosen without checking current context |
| Range edge | Target uses the opposite side of a valid range only if space remains | Target assumes the range will hold before price confirms it |
| Measured candle range | Target references the size of the pin bar or setup range | Measured move is forced when structure is too close |
| R-multiple target | Target is based on planned risk only if nearby structure allows it | Fixed R target ignores support, resistance, and spread |
| Trailing exit | Trade is managed by structure, ATR, moving average, or written trailing rule | Trail is changed emotionally after each pullback |
| Time exit | Trade is reviewed or closed if price does not respond within the planned window | A stalled pin bar setup becomes an unplanned hold |
| Invalidation exit | Exit when the rejection reason disappears | Trader holds because the wick looked strong earlier |

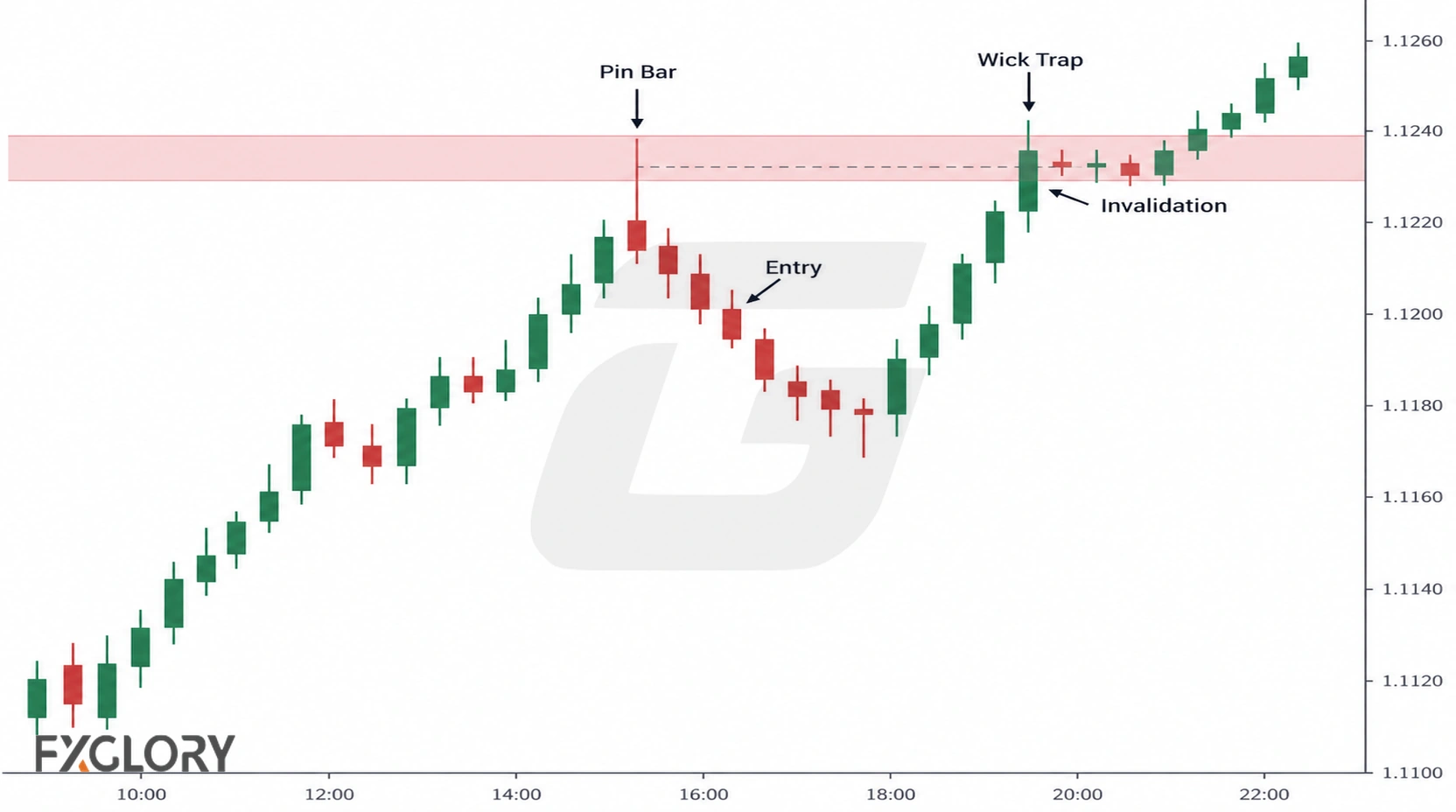

Failed Pin Bars And Wick Traps
A failed pin bar happens when price does not respect the rejection idea. The candle may look clean at first, but the next movement can close through the wick area, break the structure, or remove the reason for the setup.
A wick trap can happen when price briefly tests above resistance or below support, creates a long wick, and then reverses or continues in a way that invalidates the original idea. The trader should know in advance what cancels the setup.
| Failure Type | What Happens | Response |
|---|---|---|
| Immediate wick break | Price moves through the rejected extreme soon after the setup | Cancel the idea unless the written plan allows a separate review |
| Close against the pin bar | Follow-up candle closes against the rejection direction | Review whether the original candle reason still exists |
| No follow-through | Price stalls after the pin bar and target room weakens | Use the time rule or stand aside |
| Pin bar inside chop | Long wick appears inside overlapping candles | Do not treat the wick as clean rejection |
| News-driven pin bar | Fast movement creates a dramatic wick during unstable conditions | Use event-risk rules or skip |
| Repeated failed pin bars | Several wicks fail around the same area | Market may be choppy or liquidity-sensitive |
Pin Bar Combos And Double Pin Bars
Some traders review pin bars together with other candle structures, such as an inside bar after a pin bar, a pin bar after an inside bar, or two nearby pin bars testing a similar area. These combinations can add chart detail, but they should not replace the basic decision process.
A pin bar and inside bar combination may show rejection followed by compression, or compression followed by rejection. A double pin bar may show repeated testing of an area. The setup still needs location, invalidation, target room, and risk review.
| Combination | Possible Reading | Weak Use |
|---|---|---|
| Pin bar then inside bar | Rejection followed by compression | Trader assumes compression must break in the pin bar direction |
| Inside bar then pin bar | Compression followed by a rejection candle | Trader ignores the mother bar or broader structure |
| Double pin bar | Repeated testing of a similar area | Trader counts wicks without checking level quality |
| Pin bar near engulfing candle | Rejection appears near a pressure-shift candle | Trader stacks pattern names without a clear plan |
For the inside-bar side of these combinations, use the forex inside bar strategy guide. For broader pattern definitions, use the forex candlestick patterns guide.
Pin Bar Indicators And Scanners
Pin bar indicators and scanners can help mark candles that meet a wick, body, or range rule. They can save time when reviewing many charts, but they do not know whether a pin bar has useful location, target room, invalidation, spread conditions, or account-level risk.
| Tool Use | Possible Help | What It Cannot Replace |
|---|---|---|
| Pin bar scanner | Finds candles with selected wick/body proportions | Market context and level quality |
| Alert script | Notifies when a candle matches a selected structure | Stop placement, target room, and spread review |
| Wick/body filter | Applies a consistent structural rule | Support, resistance, trend, and volatility review |
| Indicator confirmation | May add momentum, volatility, or trend context | Risk control and invalidation logic |
Forex-Specific Spread, Wick, Session, And News Rules
Forex pin bar strategies need extra caution because candle shape can be affected by spread, liquidity, session changes, rollover, news events, and broker-feed differences. A pin bar that looks clean after the fact may not have been easy to trade in real time.
| Forex-Specific Issue | Why It Matters | Better Rule |
|---|---|---|
| Spread near entry | Small pin bar setups can lose target room after cost | Check spread before accepting small targets |
| Long wick | Wicks can show rejection, but also noise or temporary liquidity tests | Use location and invalidation instead of wick shape alone |
| Session change | Liquidity and movement speed can change around market sessions | Do not assume a pin bar formed in quiet conditions behaves the same later |
| News event | Fast movement can distort candle shape, spread, and slippage risk | Use the event-risk rule or stand aside |
| Broker-feed difference | Minor high, low, open, or close differences can change candle appearance | Do not force borderline pin bars |
| Volatility expansion | Large candles can make stop distance too wide | Calculate position size only after stop distance is clear |
Short-term pin bar setups can be sensitive to cost. Check the spread conditions that affect trade planning before accepting a small candle-based target. When stop distance, position size, leverage exposure, and margin need to be reviewed together, use the margin calculator before the order is placed.
Why Pin Bar Forex Strategies Fail
Pin bar strategies often fail when traders treat a long wick as a complete trading reason. A pin bar may describe price rejection, but it does not decide whether the trade is valid.
| Failure Reason | What Happens | Better Rule |
|---|---|---|
| Every long wick is traded | Low-quality candles create repeated weak decisions | Trade only setups that pass context and quality checks |
| No location | Pin bar appears in random movement | Require support, resistance, trend, range, pullback, or failed-break context |
| Entering before close | The candle changes shape before completion | Judge pin bars after close unless the strategy has a written early-entry rule |
| Messy price action | Overlapping candles create many weak wicks | Skip when structure is unclear |
| Stop has no invalidation | Trader does not know where the rejection idea is wrong | Do not enter without invalidation |
| Target too close | Nearby structure or spread weakens the setup | Skip if target room is poor after cost |
| News-event wick | Fast movement creates a dramatic candle during unstable conditions | Use the event-risk rule or stand aside |
| Overleveraging | A normal failed pin bar becomes an account-level problem | Size after stop distance and margin review |
| Recovery re-entry | Trader re-enters after a failed pin bar to recover a loss | Stop trading when the risk rule is reached |
Risk Rules And No-Trade Conditions
Pin bar setups can look convincing because the wick is visual. That does not make them safe. A pin bar setup should be rejected when the pattern, context, stop, target, market condition, or account risk does not support the trade.
| No-Trade Condition | Why It Matters | Action |
|---|---|---|
| Candle has not closed | The final wick, body, and close can change | Wait for completion unless the strategy says otherwise |
| Market condition is unclear | The wick may have no useful context | Skip until structure is clearer |
| No meaningful location | The pin bar has no chart reason | Skip |
| Pin bar appears in messy chop | Many wicks can appear inside noise | Do not trade the pattern |
| Weak wick quality | The candle does not show clear rejection | Skip or keep as observation only |
| Target is too close | Nearby levels or spread reduce usefulness | Skip if reward is weak after cost |
| Stop is unclear | The trader cannot define where the idea is wrong | Do not enter |
| News risk is too close | Spread, speed, and volatility can change quickly | Use event rule or stand aside |
| Daily stop reached | More attempts can become recovery trades | Stop trading for the session |
| Recovery motive appears | The trade exists because the trader wants to recover a prior loss | Step away and review the plan |
Testing And Review Before Live Trading
A pin bar forex strategy should be reviewed on historical examples or demo conditions before it is used with real funds. The purpose is not to find perfect pin bars. The purpose is to check whether the same context rules, wick-quality rules, entry triggers, stop rules, target rules, and no-trade rules can be followed repeatedly.
Record both taken and skipped setups. Skipped setups matter because many pin bar mistakes come from weak location, unfinished candles, nearby obstacles, spread damage, oversized stops, news risk, and trades taken after the rejection reason already failed.
- Record the market condition before the pin bar forms.
- Record the timeframe used for context and the timeframe used for entry.
- Record whether the pin bar was completed before review.
- Record wick quality, body position, close location, and whether the wick tested a meaningful area.
- Record whether the setup formed near support, resistance, pullback context, range edge, breakout context, or random movement.
- Record the planned entry trigger before entry.
- Record whether the stop and target were known before entry.
- Record whether spread, volatility, news risk, margin, and position size were checked before entry.
- Record whether the trade exited by target, trail, time rule, failed-pin-bar rule, or invalidation.
- Compare trades that followed the plan with trades that broke it.
Pin Bar Forex Strategy Checklist
Before a pin bar setup becomes a trade, each item below should already be clear.
- Define whether the market is trending, ranging, pulling back, breaking out, reversing, or unclear.
- Confirm that the pin bar has closed before judging its final wick, body, and close.
- Check whether the candle has a dominant wick and a clear close away from the tested extreme.
- Check whether the pin bar forms at a useful location, such as support, resistance, trend structure, pullback, range edge, failed break, or role-reversal area.
- Reject the setup if the candle forms in messy chop or random movement.
- Reject the setup if price points directly into the next obstacle.
- Write the entry trigger before entry.
- Define the invalidation point before entry.
- Choose position size only after stop distance is known.
- Set the target by next structure, support/resistance, swing point, range edge, measured candle range, R-multiple, trail, time rule, or invalidation.
- Write the failed-pin-bar cancel rule before entry.
- Check spread, volatility, event risk, margin, and correlated exposure before entry.
- Stop trading when the daily loss, drawdown, or trade-count rule is reached.
- Review whether the trade followed the plan, not only whether it made or lost money.
Frequently Asked Questions
What is a pin bar forex strategy?
A pin bar forex strategy is a trade-planning method that reviews a long-wick rejection candle with market context, chart location, entry rules, stop placement, target logic, and risk control. The pin bar is only one part of the strategy.
Is a pin bar a reversal signal in forex?
A pin bar is not automatically a reversal signal. It can appear before a reversal, continuation, failed break, or no useful trade. Its meaning depends on location, prior movement, candle close, support or resistance, trend context, target room, and risk.
Where is a pin bar usually reviewed in forex?
A pin bar is usually easier to review near support, resistance, a range edge, a trend pullback, a failed breakout area, or a role-reversal zone. A pin bar in the middle of random movement is usually weaker.
How do traders enter a pin bar setup?
Some traders review entry after the pin bar closes, after price breaks the pin bar high or low, after a retrace into part of the candle range, or after a retest. The entry method should be written before the setup forms.
Where should stop loss be placed in a pin bar trade?
A stop can be planned beyond the pin bar wick, beyond the full candle range, beyond nearby support or resistance, beyond a swing high or low, or through a volatility-adjusted rule. Position size should be chosen only after stop distance is known.
How are targets set with a pin bar forex strategy?
Targets can be reviewed near the next support or resistance zone, swing high or low, prior range edge, measured candle range, planned R-multiple, trailing rule, time rule, or invalidation exit. The target should still make sense after spread and nearby obstacles.
What is a failed pin bar?
A failed pin bar happens when price does not respect the rejection idea and instead moves through the wick area, closes against the setup, or removes the original invalidation logic. A failed pin bar should not be held unless the strategy has a written rule for that condition.
Why do pin bar forex strategies fail?
Pin bar forex strategies often fail when traders trade every long wick, ignore location, enter before the candle closes, use weak pin bars inside chop, place stops without invalidation, accept targets damaged by spread, trade into news volatility, or overleverage after a candle looks convincing.
Related Contents
Prepare Pin Bar Rules Before Trading Live
Create an FXGlory account to access FXGlory's trading environment and review chart workflow, candle structure, spread conditions, margin requirements, pin bar entry rules, exit planning, failed-setup rules, and risk controls before placing a real-money trade.
Create an FXGlory Account
